SUN1005---Compositive manifolds
|
Performance and parameters |
|
1、the manifolds consist of separeated and compositive mainfolds. |
| 2Each outlet on the manifold is equipped with manual valve. |
|
3、each outlet on the compositive manifolds with knob valve, electric actuators instead of handwheel and control each room temperature. |
|
|
|
4、 separated and compositive manifolds center distance 210 mm. |
|
5、branch pipe distance: 50 mm. |
| 6、branch pipe diameter: 3/4 "x ф 18. |
|
|

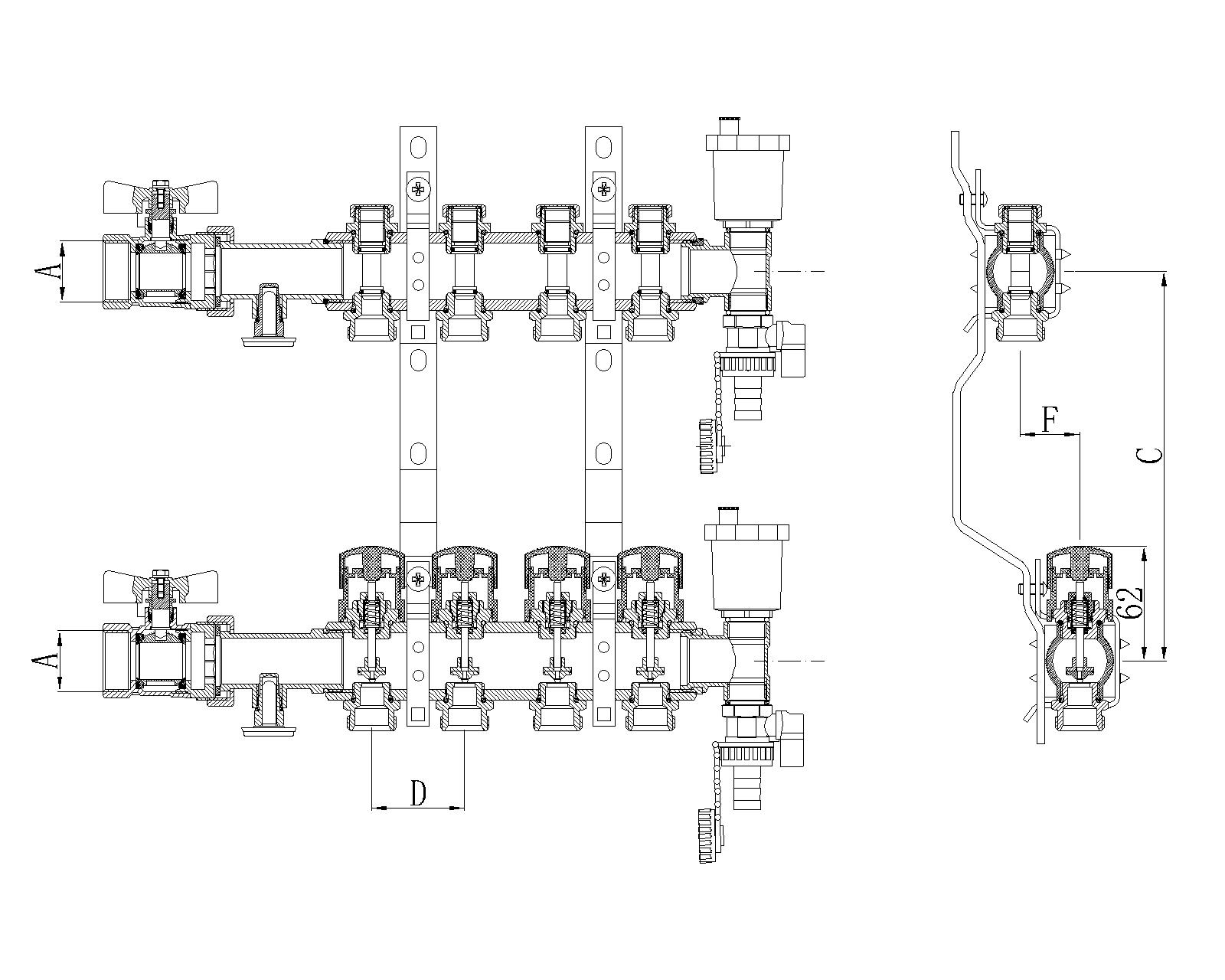

Product size
| ■ | ■ | ||||||
| A | B | C | D | E | F | ||
| 123.33 | 1223 | 1234 | 1234 | 1234 | 1234 | 123 | 123 |
