SUN1009---Compositive manifolds
|
Performance and parameters |
|
1、manifolds consist of separated and compositive manifolds , equipped with tail valve. |
|
2、each outlet on the manifold is equipped with visual flowmeter. |
|
3、each outlet on the compositive manifolds with manual valve, the electric actuators can instead of handwheel and control each room temperature. |
|
|
|
4、separated and compositive manifolds center distance 210 mm. |
|
5、branch pipe distance:49mm. |
| 6、branch pipe diameter: 3/4 "x ф 18. |
|
|
| ■ | ■ | ||||||

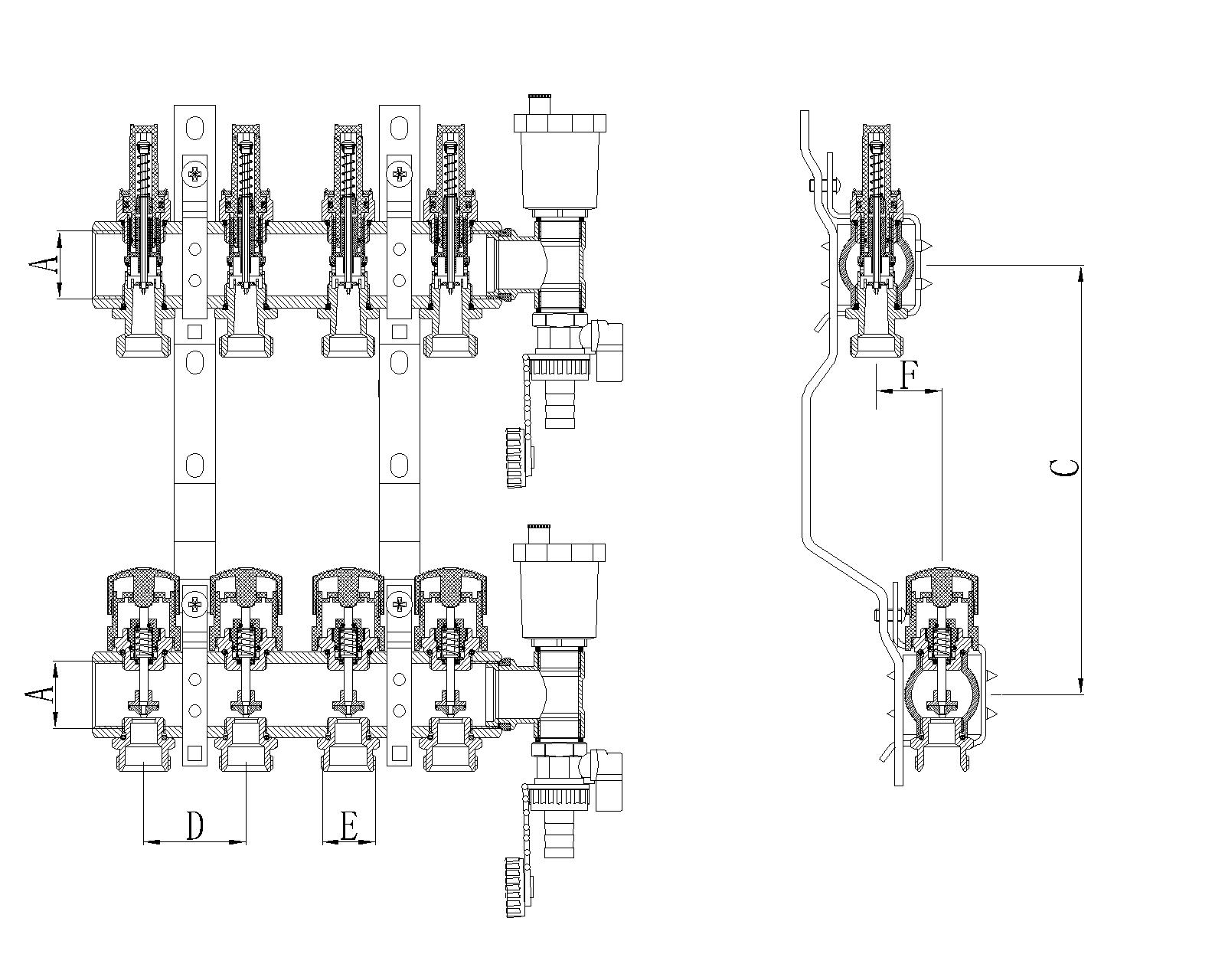

| A | B | C | D | E | F | ||
| 123.33 | 1223 | 1234 | 1234 | 1234 | 1234 | 123 | 123 |
